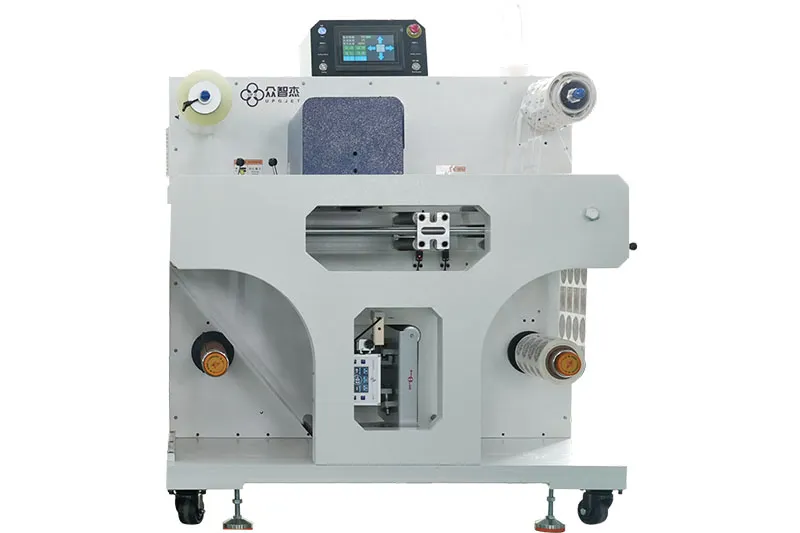

LQ-MD 330B
Digital Label Cutter
LQ-MD 330B
Digital Label Cutter
This digital label cutter is a compact, cost-effective solution for small-batch cutting of self-adhesive labels. Designed for efficiency and ease of use, the digital label cutter offers high cutting precision, fully automatic blade division, and one-button start and pause functionality. Ideal for label producers seeking stability and performance in a small footprint, the digital label cutter delivers consistent, high-quality results with minimal operator effort.
Specifications
| Unwinding Maximum Lodding Diameter | 250 mm |
| Material Support Width | Max 350 mm |
| Cutting Length Range | 10-300 mm |
| Die Cutting Speed | 15m/min (specifically it is according to die track) |
| No. of Cutting Heads | 4 |
| No. of Split Knives | Standard 5 (selected according to demand) |
| Die Cutting Method | Imported alloy die cutting blade |
| Repeated Die Cutting Precision | 0.05 mm |
| Split Speed | 30 m/min |
| Split Dimensions | 20-320 mm |
| Document Format | PLT |
| Machine Size | 1000 x 1015 x 1600 mm |
| Machine Quality | 1000 kg |
| Power | 2000 W |
Features
- High Stability and Speed: The digital label cutter is built with a rigid structure that ensures superior cutting accuracy, enhanced stability, and fast processing outperforming similar machines in its class.
- Floating Roller System: Features an automatic, adjustable floating roller system that operates without springs or external pressure. This ensures even force distribution and consistent cutting quality.
- Integrated Slitting Blades: Comes equipped with slitting blades capable of cutting label strips as needed, offering flexibility for various label formats and batch requirements.
